How to specify valves, tubes and fittings for industrial piping

A practical way to think about the system

Valves, tubes and fittings should be specified as parts of one pressure-containing assembly, not as unrelated hardware. The tube or pipe carries the fluid, fittings change direction or connect branches, and valves provide isolation, throttling, diversion or flow checking. A sound specification checks service conditions, materials, pressure-temperature ratings, end connections, dimensions, testing and documentation across all three component groups.

For teams comparing valves tubes and fittings during procurement, maintenance planning or design review, the central question is not whether two catalog items appear to fit. It is whether the complete line remains suitable under the expected pressure, temperature, corrosion, vibration, cleaning and inspection conditions.

This article uses public standards information from ASME, ASTM and API as reference points and keeps the discussion focused on industrial specification practice. For more related material, see the Fittings & Valves section.

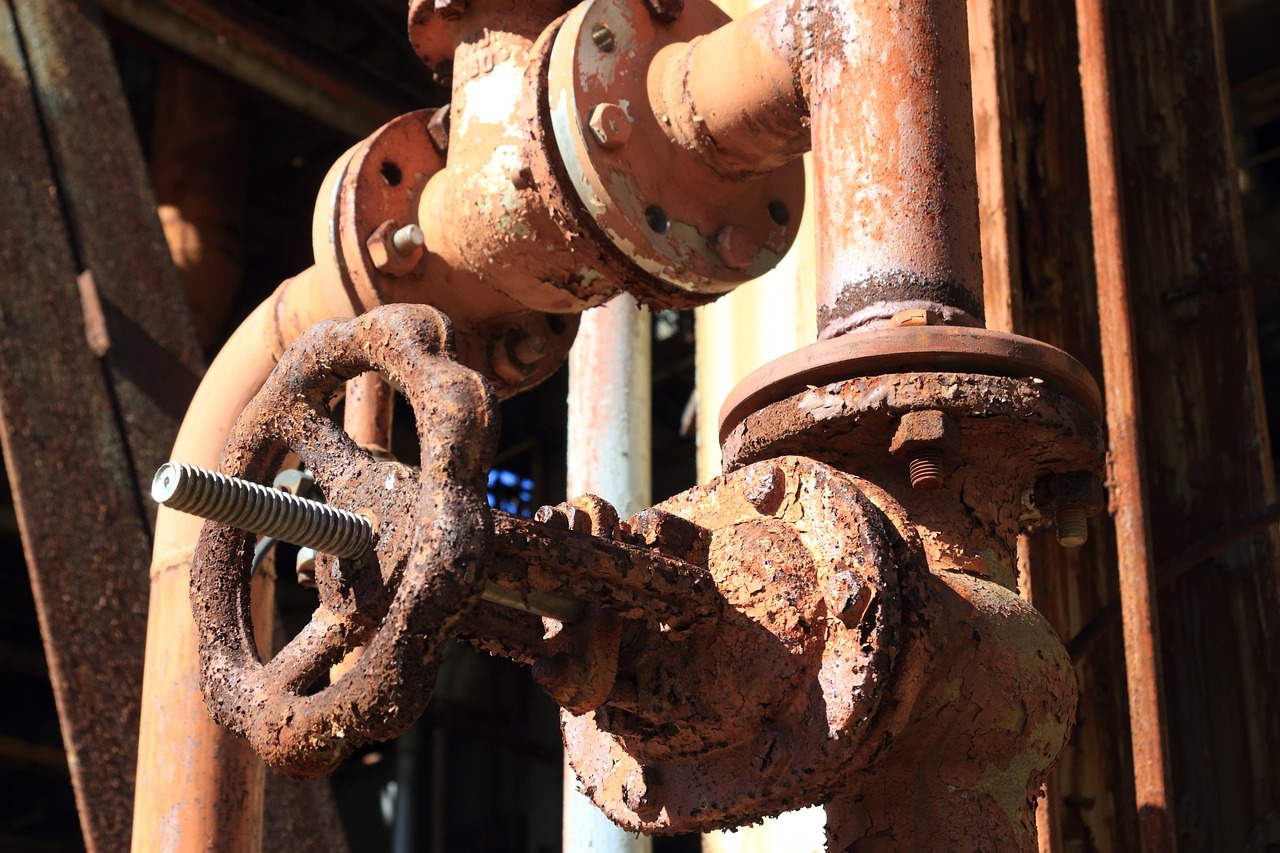

What each component does in a pressure line

The basic roles are straightforward, but many specification problems start when those roles are treated too casually. A tube or pipe forms the continuous pressure boundary. A fitting changes the geometry by creating an elbow, tee, reducer, coupling, union, flange or other transition. A valve adds a controlled shutoff or restriction point, but it also introduces a body cavity, seats, stem seals, packing, gaskets or bolting that may behave differently from straight tubing.

Component	Main function	Specification focus	Common risk if overlooked
Tube or pipe	Carries fluid through the line	Material grade, wall thickness, outside diameter or nominal size, manufacturing specification, pressure and corrosion allowance	Under-rated wall, wrong alloy, poor compatibility with fittings
Fittings	Connect, branch, reduce or redirect the line	Dimensional standard, end type, schedule or wall match, material, welding or threading details	Misalignment, stress concentration, crevice corrosion, leak at joint
Valves	Stop, regulate, divert or check flow	Valve type, pressure class, body and trim material, seat material, end connection, test standard	Seat leakage, wrong flow characteristic, gasket or packing failure

The word “tube” also needs care. In many industrial specifications, tubing is identified by outside diameter and wall thickness. Pipe is commonly identified by nominal pipe size and schedule. That distinction affects how fittings are selected. Compression tube fittings, sanitary tube fittings, threaded pipe fittings and butt-weld pipe fittings may look similar in a catalog, but they are not automatically interchangeable.

The standards map matters more than the catalog label

Standards do not replace engineering judgment, but they give designers, buyers, manufacturers, inspectors and maintenance teams a common language. ASME B31.3 is widely used for process piping and covers areas such as design, materials, fabrication, examination, inspection and testing. ASME B16.34 is a key valve standard for flanged, threaded and welding-end valves, including pressure-temperature ratings, materials, dimensions, tolerances, nondestructive examination, testing and marking. ASME B16.5 is commonly referenced for pipe flanges and flanged fittings, including ratings, dimensions, tolerances, materials, marking and testing.

For tubing and pipe material, ASTM specifications help define exactly what is being purchased. ASTM A269 covers seamless and welded austenitic stainless steel tubing for general service. ASTM A312 covers seamless, welded and heavily cold-worked austenitic stainless steel pipe intended for high-temperature and general corrosive service. Those descriptions may sound close, but they are not the same purchasing requirement. A tube fitting designed around ASTM A269 tubing may not be correct for an ASTM A312 pipe line unless an engineered transition is specified.

Valve testing is another area where shorthand can cause confusion. API 598 is commonly associated with inspection and pressure testing requirements for several industrial valve types, including shell and closure testing. The correct test requirement still depends on the valve type, purchase specification, governing piping code and any project-specific acceptance criteria. A valve described only as “tested” is less useful than a valve identified by test standard, test pressure, seat leakage class where applicable, test medium and documentation requirement.

Start with service conditions, not component preference

The first specification step is to define the service. Fluid, pressure, temperature, flow rate, corrosion behavior, cleaning method, thermal cycling, vibration and installation location all influence component selection. A ball valve may be efficient for quick isolation, but it is not suitable for every throttling service. A needle valve can provide fine control on a small instrument line, but it is not a general solution for larger process flow. A compression fitting may be practical for instrumentation tubing, while a welded fitting may be preferred where permanent joints, fire exposure or high vibration are major concerns.

Pressure-temperature rating is especially important because allowable pressure generally changes with material and temperature. The valve body, flange, gasket, tube wall and fitting end should be reviewed as a group. The assembly is limited by its weakest rated element, not by the strongest catalog item in the package. If a high-class valve is installed between lower-rated flanges or connected to tubing with insufficient wall thickness, the system rating is still constrained by the lower-rated parts.

Material compatibility also extends beyond the main body alloy. In valves, wetted trim, seats, seals, packing and gaskets may all contact the fluid. In tube and fitting assemblies, ferrules, weld filler metal, O-rings or thread sealants can create compatibility issues. Stainless steel, carbon steel, brass, copper alloys and polymer seals behave differently in chloride exposure, steam, fuel gas, oxygen service, chemical dosing, potable water and high-temperature environments. When the service is hazardous or regulated, material selection should be checked against the governing project code and any owner specification, rather than inferred from general catalog descriptions.

Connection type is where many hidden mismatches appear

End connections look simple, but they determine installation method, inspection access and maintenance behavior. Threaded joints are compact and widely used in small sizes, yet they introduce stress concentration and potential leak paths. Socket-weld joints can be strong, but they may create crevices and require welding control. Butt-weld fittings provide a continuous welded pressure boundary and are common in process piping, but they require qualified procedures and inspection planning. Flanged joints allow disassembly, but they add bolting, gasket selection, flange facing and tightening control.

Tube fitting connections require their own discipline. A ferrule or compression fitting depends on the correct tube outside diameter, wall hardness, surface condition, insertion depth and installation torque or turns from finger-tight, depending on the manufacturer’s instructions. Mixing fitting bodies, nuts or ferrules from different systems can undermine sealing performance even when the nominal tube size appears to match. For maintenance teams, traceability and clear labeling are not paperwork luxuries. They reduce the chance that a minor-looking substitution becomes a leak source.

Flange transitions deserve special attention when valves are involved. The valve face-to-face dimension, flange rating, flange facing, gasket type, bolt material, bolt length and pipe alignment all affect whether the joint can be assembled and sealed correctly. A wafer butterfly valve, for example, depends on the surrounding flanges and bolting arrangement differently from a flanged gate valve. A check valve may also require orientation and minimum straight-run considerations, depending on its design and service. See also: Bolts & Fasteners.

A specification checklist for valves, tubes and fittings

A useful purchasing or design specification should be detailed enough that a technically equivalent item can be reviewed without guesswork. It should also avoid decorative or irrelevant requirements that add cost without reducing risk. The following checklist is a practical starting point for industrial content review, procurement discussions and maintenance planning.

• Service definition: fluid, pressure, temperature, flow condition, cleaning method, corrosion factors and whether the line is hazardous, sanitary, utility or instrument service.
• Governing code or standard: identify whether the line is designed under a process piping code, sanitary standard, building code, owner standard or another project rule.
• Tube or pipe basis: state outside diameter and wall for tubing, or nominal pipe size and schedule for pipe, plus material specification and grade.
• Fitting standard and form: define elbows, tees, reducers, unions, couplings, flanges or adapters by dimensional standard, material and end connection.
• Valve function: specify isolation, throttling, check, vent, drain, sampling, diversion or control service before selecting the valve type.
• Pressure-temperature rating: confirm the rating of every pressure-containing component at the design temperature, not only at room temperature.
• End connection compatibility: match threads, weld ends, flange facing, gasket type, tube fitting system and dimensional tolerances.
• Sealing materials: include seats, O-rings, packing, gaskets and sealants where they are wetted or exposed to temperature and chemicals.
• Testing and inspection: define hydrostatic, pneumatic, shell, seat, leak, weld examination or material verification requirements as applicable.
• Documentation: request mill test reports, certificates of conformity, heat numbers, pressure test records, marking requirements and installation instructions when required by the project.

The key is consistency. A stainless tube, carbon steel adapter and brass valve may each be acceptable in a separate context, but the combination may create galvanic, temperature, pressure or contamination concerns. Likewise, a fitting that meets a dimensional standard may still be wrong if the material grade, schedule or end preparation does not match the line specification.

Quality review should cover installation and maintenance

Good component selection can still fail if installation assumptions are weak. Welding requires qualified procedures, clean fit-up and suitable examination. Threaded connections need correct engagement, compatible sealant and control against over-tightening. Flanged joints depend on gasket condition, flange alignment, bolt lubrication and tightening sequence. Tube fittings require tube preparation, deburring, correct insertion and manufacturer-specific assembly instructions.

Maintenance changes the risk profile. Valves are operated, packed, adjusted and sometimes rebuilt. Flanged joints may be opened. Compression fittings may be disconnected and remade. A system that is easy to install once may not be easy to inspect, drain, clean or maintain safely over years of operation. Accessibility, spare part identification and documentation should therefore be treated as part of the specification, not as afterthoughts.

Generic guidance also has limits. Oxygen service, sour service, food contact, pharmaceutical cleanability, high-purity gas, fire-safe requirements, cryogenic operation and pressure equipment regulations can add specialized requirements. In those cases, component selection should be reviewed against the exact project code, the owner’s specification and the manufacturer’s published limits.

Frequently asked questions

Are tube fittings and pipe fittings interchangeable?

Not by default. Tube fittings are usually based on tube outside diameter and a specific sealing method. Pipe fittings are commonly based on nominal pipe size, thread form, socket-weld or butt-weld geometry. An engineered adapter may connect the two systems, but dimensions, pressure rating and material compatibility must be verified.

Which valve type is best for a tubing system?

No single valve type is best for every tubing system. Ball valves are often used for on-off service, needle valves for fine control in small lines, check valves for backflow prevention, and diaphragm or sanitary valves for cleanability-sensitive services. The correct choice depends on function, pressure, temperature, fluid, cleaning method and acceptable leakage.

What documents should be requested with valves, tubes and fittings?

Common documents include material test reports, certificates of conformity, pressure test records, heat number traceability, valve test reports, dimensional confirmations and installation instructions. The exact package should match the governing code, project specification and criticality of the service.

Why do pressure ratings differ between similar-looking parts?

Pressure rating depends on material, wall thickness, design standard, temperature, end connection and sealing method. Two parts may share the same size but have different pressure-temperature limits because they were built to different standards or intended for different services.

What is the most important rule when combining valves, tubes and fittings?

Treat the assembly as one pressure boundary. The safe operating limit is controlled by the lowest-rated compatible component, including the valve, tube or pipe, fitting, gasket, seal, weld, thread or flange joint. A reliable specification checks the complete pressure path, not just the individual catalog descriptions.
