MIG welding for aluminum setup, wire, gas, and quality guide
Can you MIG weld aluminum reliably?
Yes, but MIG welding for aluminum is not simply steel MIG with a different spool of wire. It can produce fast, strong, repeatable welds when the machine has enough output, the wire feeds without shaving or kinking, the joint is cleaned just before welding, and the shielding gas is correct.
A common shop setup uses DC electrode positive, 100% argon, ER4043 or ER5356 wire, and either a spool gun or a push-pull gun. The common failures are just as predictable: porosity from contamination or lost shielding, lack of fusion from cold starts or the wrong transfer mode, and birdnesting from trying to push soft aluminum wire through a standard steel setup.
For readers comparing welding processes, surface preparation, and metal behavior, the broader Metals & Surfaces section includes related material guides. This article focuses on the setup choices that determine whether aluminum MIG becomes a workable shop process or a recurring source of weak, dirty welds.
Why aluminum MIG welds behave differently from steel
Aluminum creates two problems at the same time. The base metal melts at a relatively low temperature, while the natural oxide film on the surface melts at a much higher temperature. American Welding Society educational material identifies this oxide film as a major contributor to porosity, incomplete fusion, and poor penetration when the joint is not properly prepared. In the shop, the puddle may look fluid even while oxide, oil, or moisture is still preventing sound fusion.
Aluminum also conducts heat quickly. A cold start can sit on top of the joint, then the part suddenly takes enough heat to burn through. That is why aluminum welding favors decisive travel speed, a consistent torch angle, and a short, controlled arc rather than slow movement and heavy weaving.
The process name can also confuse new users. MIG is the common shop term, while the formal process name is gas metal arc welding, or GMAW. With aluminum, the shielding gas must protect a highly reactive molten puddle. A steel C25 cylinder is not a direct substitute. Miller guidance commonly identifies 100% argon as the usual gas for aluminum MIG, with argon-helium blends used when additional heat input is helpful on thicker material.
Choose the wire feeding system before chasing settings
Wire feeding is often the first limit. Aluminum wire is softer than steel wire, so it can deform, shave, buckle, or jam if the drive system is not set up for it. If the wire is not feeding smoothly, changing voltage and wire feed speed will not fix the real problem.
| Feeding setup | Where it fits | Main limitation |
|---|---|---|
| Spool gun | Repair work, occasional fabrication, shorter welds, and shops adding aluminum capability to a compatible MIG machine | The gun is bulkier, small spools need frequent changes, and access can be harder in tight joints |
| Push-pull gun | Production work, longer welds, higher daily wire use, and larger spools | Higher equipment cost and compatibility requirements |
| Carefully configured push-only system | Limited use with a suitable machine, short straight cable, correct liner and rolls, and usually larger wire | Less forgiving; small-diameter wire is more likely to misfeed |
Miller guidance notes that push-only feeding can work on a limited basis when the system uses U-groove drive rolls, correct drive-roll pressure, and a straight gun cable, but thinner wire is less dependable. A spool gun shortens the distance that soft wire must travel. A push-pull gun adds drive assistance at the gun to maintain tension and is usually the more productive choice when aluminum welding is part of regular shop workflow.
The practical takeaway is simple: if wire feed is inconsistent, improve the feeding path before blaming the alloy. Use U-groove rolls rather than knurled rolls that can chew the wire. Keep the liner clean and appropriate for aluminum. Do not over-tighten the drive rolls; the goal is to feed the wire, not flatten it. Clip off contaminated wire ends and keep the spool covered when it is not in use.
Wire, shielding gas, and polarity decisions
Most aluminum MIG work starts with ER4043 or ER5356, but the correct filler depends on the base alloy, service conditions, design requirements, and finishing needs. The Aluminum Association describes 4xxx alloys as silicon-bearing materials useful for welding wire because silicon lowers melting behavior and improves flow. It also notes that 4043 is widely used for welding 6xxx series alloys in structural and automotive applications. AWS educational material similarly identifies 4043, 4943, and 5356 as dominant aluminum filler choices across many applications.
ER4043 is commonly chosen for general 6xxx work because it wets smoothly and can reduce hot-cracking sensitivity in many joints. ER5356, a magnesium-bearing filler, is stiffer and can feed more easily in some guns. It is often considered where higher as-welded strength, ductility, toughness, or anodized color matching are relevant. Neither wire is universal. If the part is structural, marine, pressure-containing, heated in service, or subject to a specification, choose the filler from an approved filler selection chart or welding procedure rather than from habit.

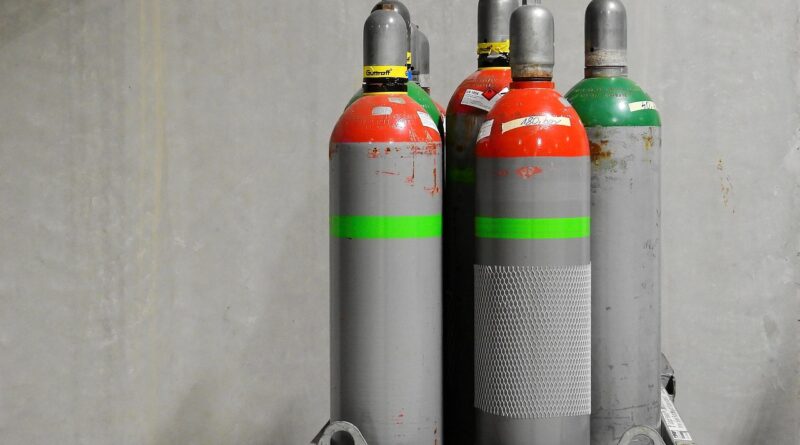

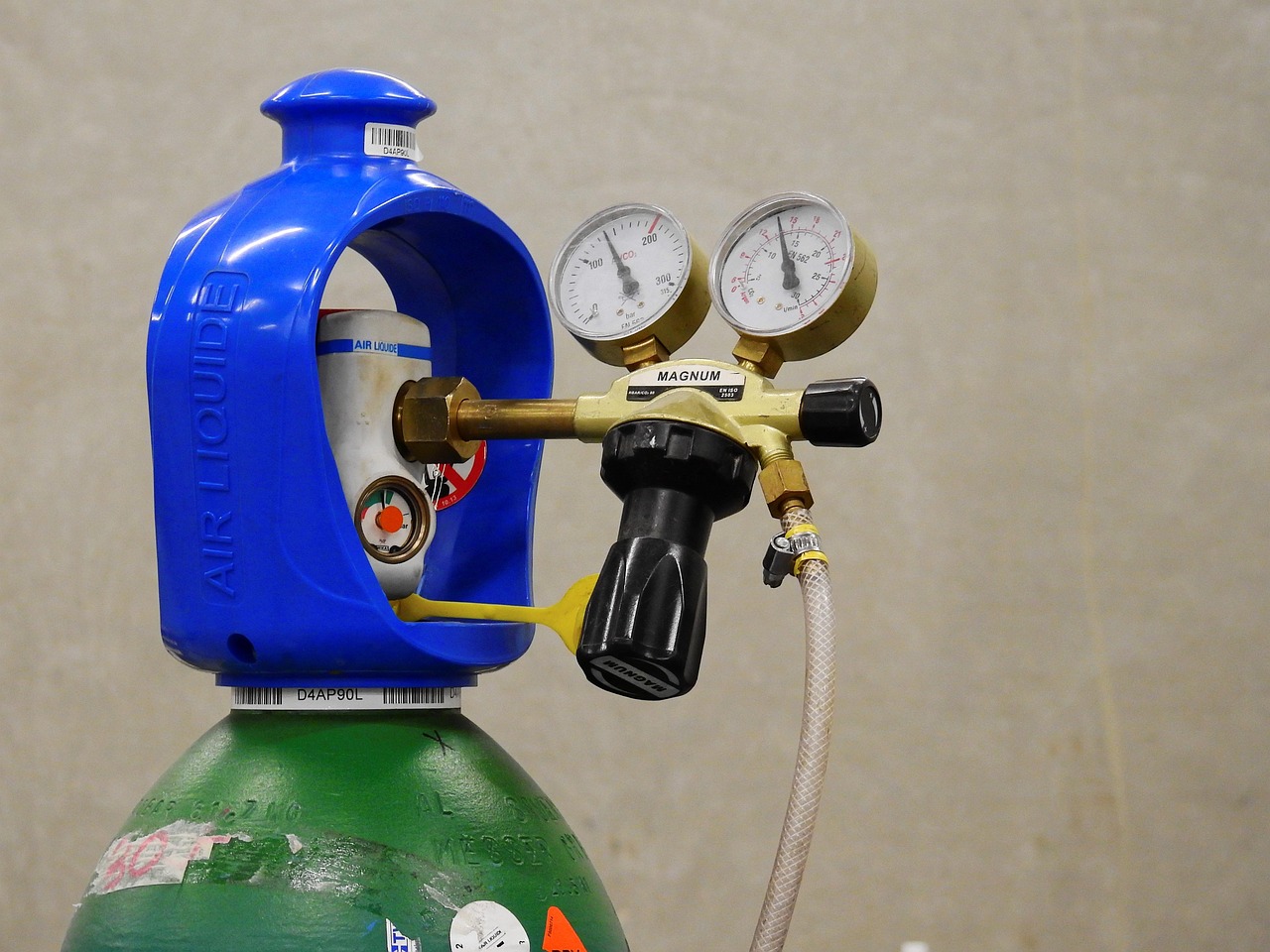

For shielding gas, 100% argon is the common starting point for aluminum MIG. Argon-helium mixtures can add heat and improve performance on thicker material, but helium cost and procedure control matter. Do not assume that CO2-containing steel blends are acceptable just because the cylinder connects to the machine. Aluminum is sensitive to contamination, and active gas blends used for carbon steel can create weld defects in aluminum applications.
Polarity is another basic checkpoint. Aluminum MIG procedures are typically run on DC electrode positive. If the machine is still configured for a previous flux-cored or steel setup, the arc may be unstable before technique becomes the issue.
Preparation workflow before the first arc
Aluminum preparation should happen close to welding time. The metal naturally forms oxide, and filler wire can pick up moisture or contamination during poor storage. AWS educational guidance on aluminum storage and preparation warns that moisture, condensation, and excessive humidity can affect filler performance. It recommends dry, enclosed storage and allowing cold filler to thermally stabilize before welding so condensation does not form on the wire.
A practical workflow looks like this:
- Confirm the base alloy if the weld has strength, corrosion, or code requirements.
- Remove oil, grease, marker residue, adhesive, and shop dirt with a compatible cleaner before brushing.
- Use a clean stainless steel brush dedicated only to aluminum, or use an approved mechanical cleaning method that does not embed steel contamination.
- Clean both sides of the joint area where practical, especially on lap joints and corners where contamination can hide.
- Fit the joint tightly enough to control burn-through, but do not force distorted parts into alignment with weld metal.
- Keep gloves, wire, and cleaned parts dry and free from grinding dust.
Do not wire-brush first and degrease second if the surface is oily; brushing can smear contamination into the surface. Be cautious with unknown cast aluminum, coated parts, anodized surfaces, and previously repaired components. Castings can contain porosity and absorbed contamination, and coated material may need removal beyond the visible weld line. See also: Bolts & Fasteners.
Starting parameters and technique checkpoints
Published procedure charts from wire and equipment manufacturers should be treated as starting points, not fixed recipes. Lincoln Electric aluminum MIG procedure tables, for example, show increasing wire diameter, amperage, voltage, gas flow, and joint preparation as material thickness rises. The exact setting still depends on machine design, transfer mode, joint type, filler alloy, position, cable condition, and operator travel speed.
| Material situation | Common starting direction | Watch for |
|---|---|---|
| Thin sheet near 1/8 in. or less | Smaller wire, fast travel, careful fit-up, and pulsed capability if available | Burn-through, distortion, and cold lap at starts |
| General 1/8 to 1/4 in. fabrication | 0.030 in. to 3/64 in. wire, 100% argon, and a spool or push-pull gun | Porosity, soot, and inconsistent bead shape |
| Thicker plate | Larger wire, more amperage, possible beveling, and possible argon-helium blend | Lack of root fusion, excessive heat input, and inadequate cleaning between passes |
| Out-of-position welds | Pulsed MIG if the machine supports it, with smaller puddle control | Sagging bead, trapped oxide, and inconsistent tie-in |
Transfer mode matters. Miller guidance states that short-circuit transfer is generally not recommended for aluminum where strength or appearance matters because good fusion is difficult to achieve. Spray transfer gives a smoother, hotter arc, but it can be too aggressive on thin material. Pulsed MIG keeps the process in a controlled spray-type transfer while reducing average heat, which is why many modern aluminum-capable machines emphasize pulsed programs.
Technique should be steady, not dramatic. Use a push travel angle so shielding gas leads the puddle. Keep contact-tip-to-work distance consistent. Increase travel speed compared with steel once the puddle establishes. Avoid large weaves that overheat the joint edges and trap oxide. At starts, allow enough heat to establish fusion; at stops, fill the crater to reduce cracking risk. If the weld suddenly turns sooty, porous, or erratic, stop and check gas flow, gun seating, nozzle blockage, wire cleanliness, and wind before making random setting changes.
Troubleshooting common aluminum MIG defects
Aluminum MIG problems usually trace back to a short list of causes. The fastest troubleshooting method is to separate feeding, shielding, preparation, and heat input instead of adjusting everything at once.
| Symptom | Likely cause | Correction |
|---|---|---|
| Pinholes or worm-like porosity | Moisture, oil, oxide, poor shielding, or excessive gas turbulence | Degrease, re-brush, check flow, block wind, and inspect the nozzle and gas fittings |
| Birdnesting at feeder | Too much resistance, wrong rolls, excess drive pressure, or soft small wire | Use U-groove rolls, reduce pressure, straighten the cable, and consider a spool or push-pull gun |
| Burn-back at contact tip | Wire feed interruption, stickout too short, or wrong tip condition | Check the liner, roll tension, tip size, and spool drag |
| Cold-looking bead or poor tie-in | Insufficient heat, wrong transfer mode, or travel too slow or too fast for the setting | Review the machine chart, improve joint prep, and use appropriate spray or pulse settings |
| Excessive black soot | Contamination, arc length issue, or gas coverage issue | Clean again, shorten arc control, and verify argon supply and nozzle condition |
A test coupon is not wasted time. Use the same alloy, thickness, joint design, and position as the real part. Cut, bend, etch, or destructively test sample welds when the application justifies it. Visual appearance alone cannot prove penetration or mechanical performance.
Quality limits, safety, and code requirements
Not every aluminum job should be solved with a hobby MIG setup. Thin decorative sheet, critical frames, pressurized tanks, vehicle suspension parts, lifting points, and unknown castings may require a qualified welder, a different process, or a documented welding procedure. TIG may be slower, but it can offer better puddle control on thin or intricate work. MIG is strongest as a productivity process when the joint design, equipment, and procedure are already suitable.
For structural aluminum work, standards are not optional background reading. As of September 2026, the American Welding Society identifies AWS D1.2/D1.2M:2026 as the current Structural Welding Code for aluminum, superseding the 2014 edition. AWS describes the 2026 edition as covering qualification, fabrication, inspection, workmanship, base and filler metal tables, and updated guidance for welded aluminum structures. However, the governing edition is the one required by the contract documents, code authority, or project specification.
Safety also needs aluminum-specific attention. NIOSH material on welding fumes identifies inhalation as a key exposure route and notes that symptoms depend on the fume components. OSHA and NIOSH historical material on aluminum welding fumes also discusses ozone formation from intense arc radiation in inert atmospheres. Use local exhaust ventilation, suitable eye and skin protection, fire controls, and respiratory protection selected under an appropriate safety program. Do not weld closed containers, contaminated tanks, or unknown coated materials without proper hazard evaluation.
Frequently asked questions
Can I MIG weld aluminum with a regular steel MIG gun?
Sometimes, but it is not the dependable starting point for most users. A standard steel setup usually has too much feeding resistance and the wrong drive components for soft aluminum wire. A spool gun or push-pull gun is usually more reliable. If a push-only setup is attempted, use the correct liner, U-groove rolls, suitable wire size, low resistance, and a straight cable path.
Is 100% argon required for aluminum MIG?
For common aluminum MIG welding, 100% argon is the usual shielding gas. Argon-helium blends may be used for thicker sections when more heat is needed. Steel MIG blends containing CO2 should not be treated as interchangeable for aluminum because they can contaminate the weld and contribute to defects.
Should I use ER4043 or ER5356 wire?
ER4043 is a common general-purpose choice for many 6xxx aluminum applications because it flows well and helps reduce cracking sensitivity in many joints. ER5356 is stiffer, often feeds better, and may be chosen for strength, toughness, or anodized color matching. The correct answer depends on the base alloy and service requirement, so use a filler selection chart or qualified procedure for critical work.
Why does my aluminum MIG weld have porosity?
Porosity usually comes from contamination or shielding failure. Check for oil, moisture, oxide, dirty filler wire, wind, leaks, blocked nozzles, excessive gas flow turbulence, or incorrect gas. Clean the joint again, verify argon at the gun, and run a test bead before continuing on the real part.
Is MIG or TIG better for aluminum?
Neither process is universally better. MIG is faster and well suited to production, thicker material, and repetitive fabrication when the setup is correct. TIG offers finer heat and puddle control, which can make it more suitable for thin sheet, small parts, cosmetic welds, and complex repairs.
