Are Self Tapping Bolts for Metal the Best Choice for Strong Sheet Metal Joints?

What Are Self Tapping Bolts for Metal?

If you are sourcing self tapping bolts for metal, you are likely looking for fasteners that make their own mating thread in steel, aluminum, or another metal panel. In daily buying work, many people call them bolts. In fastener standards, these parts are more often called tapping screws, self-tapping screws, or self-drilling tapping screws. This naming point matters on a purchase order, because the factory, inspector, and end user need to be talking about the same part.

Industry Naming

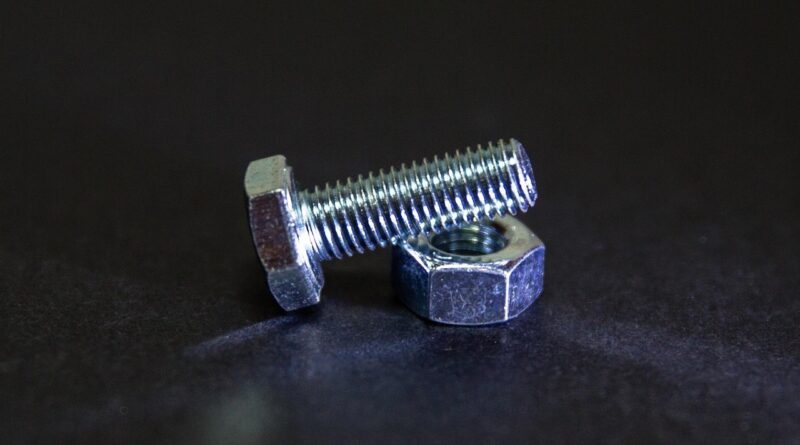

A bolt normally works with a nut or a hole that is already threaded. A tapping screw makes or cuts its own thread in the base material. ASME B18.6.3-2024 covers machine screws, tapping screws, and metallic drive screws in inch series. ISO 1478:1999 gives tapping screw thread data. These standards are the formal wording behind the common shop term buyers use every day.

Metal Thread Creation

The main point is how the thread is made. A self-tapping fastener goes into a prepared or drilled hole and forms or cuts a mating thread in the metal. A self-drilling version has a drill point, so it drills the hole first and then taps the thread. SAE J78, revised July 2021, describes steel self-drilling tapping screws that drill a hole and form or cut mating threads without breaking during assembly when they meet the standard requirements.

Where They Fit Best

These fasteners are a good fit for sheet metal cabinets, duct brackets, appliance housings, light-gauge framing, HVAC panels, enclosure covers, trailer skins, and similar parts. They are not the right answer for every load case. If the joint has heavy vibration, high pull-out force, or repeated service removal, a machine screw with an insert, weld nut, rivet nut, or through bolt may be the safer choice.

When Should You Choose Self Tapping Instead of Standard Bolts?

The choice depends on access, metal thickness, service life, and how often the joint will be opened. A standard bolt and nut gives strong clamping when both sides can be reached. A tapping fastener is more useful when the back side is blocked, thin, or too slow to handle with nuts and washers.

Thin Sheet Metal

For thin steel or aluminum sheet, a tapping fastener can reduce drilling, tapping, and nut handling time. The thread grips the sheet itself, which helps in production runs and field repair. The limit is thread depth. A 1 mm panel gives much less thread engagement than a thick tapped plate, so it should not be treated like a structural bolt joint.

One-Side Access

Panels, channels, and hollow frames often block the back side. In that situation, a self tapping fastener lets the worker install from the visible face only. This is why it is common in service doors, electrical boxes, metal studs, and small brackets. It also avoids dropping a nut inside a closed frame, and anyone who has shaken a cabinet to find a loose nut knows the problem.

Limited Reuse

A self-tapped sheet metal hole is usually best for limited assembly and removal. If a cover has to come off every month, the formed thread can wear or strip. For regular service work, specify a captive nut, threaded insert, or rivet nut. That small added cost can prevent trouble after the third or fourth repair visit.

Which Type Works Best for Your Metal Thickness?

Point style is not just a catalog line. It decides whether the fastener drills, pierces, forms, or cuts. Match the point to the sheet thickness and hardness before comparing price. A low-cost screw is not really low cost if it burns the point, strips the hole, or scraps the panel.

Self Drilling Points for Light Gauge Steel

Self-drilling tapping screws have a drill-shaped tip. They are used often in steel framing, roofing, cladding, and metal-to-metal brackets. The drill point length must be long enough to pass through the full material stack before the threads start to bite. If the threads engage too early, the screw can lift the top sheet away from the bottom sheet and leave the joint loose.

Pilot Hole Tapping Screws for Cleaner Threads

Some self tapping bolts for metal need a pilot hole. The pilot hole controls thread grip and driving torque. A public sheet metal screw diameter table from Bolt Depot lists a #10 sheet metal screw diameter as about 0.190 inch, but that figure does not replace the maker’s pilot hole chart. Hole size changes with material thickness, screw type, and the thread hold needed for the job.

Thread Cutting Screws for Harder Material

Thread cutting screws remove material as they go in. They can work better in thicker metal, castings, or harder substrates where forming threads would need too much torque. Thread forming types push material aside instead. In plain shop terms, cutting makes chips, and forming moves metal. Chips need space to clear, especially in blind holes.

How Do Material and Coating Affect Service Life?

The base metal and coating decide how the fastener drives and how it holds up after installation. A part can thread well on day one, then rust, seize, or stain the panel later if the finish is not right for the site.

Hardened Carbon Steel for Thread Forming

Most self-drilling and self-tapping fasteners for steel are hardened carbon steel. The point and threads have to be harder than the material they enter. SAE J78 focuses on carbon steel self-drilling tapping screws for this reason. If the fastener is too soft, the point rounds off or the thread folds before it forms a usable mating thread.

Zinc Plating for Indoor and Light Outdoor Use

Zinc-plated steel is common for indoor panels, dry equipment, and light-duty service. Zinc gives sacrificial protection to the steel under it, but thin electroplating is not the same as a heavy outdoor coating. The Industrial Fasteners Institute has published technical notes on plating risks, including hydrogen embrittlement concerns for high-strength hardened fasteners. For critical hardened parts, ask the supplier about baking, plating process control, and inspection records.

Stainless or Coated Fasteners for Wet Conditions

Stainless steel or specialty coated screws may be a better fit for wet, coastal, or chemical environments. Still, stainless is not always the automatic choice. The British Stainless Steel Association notes that galvanic corrosion risk changes when stainless contacts aluminum or galvanized steel in the presence of moisture. For mixed metals, consider isolation washers, sealant, compatible coatings, or a corrosion review before placing the order. See also: Fittings & Valves.

How Should You Install Them Without Stripping the Joint?

Many failures start during installation, not months later. The usual causes are the wrong hole size, too much speed, poor bit fit, a worn driver, or a fastener that does not match the metal stack. Good installation should feel steady and uneventful. In this work, that is usually a good sign.

Correct Pilot Hole Size

If the fastener needs a pilot hole, use the supplier’s chart. A hole that is too small raises torque and can break the screw. A hole that is too large gives weak threads and low pull-out strength. On thin sheet, even one drill size can matter because there is not much metal available to form the thread.

Driver Speed and Seating Pressure

Use steady pressure and the correct driver bit. High speed can overheat drill points, especially in harder steel. Stop when the head seats. Do not keep spinning to make it look tighter, because the thread can strip without much warning. For gasketed metal roofing screws, overdriving can crush the washer and cause leaks later.

Safety Checks and Jobsite Debris

Metal drilling and fastening can throw chips. OSHA 1926.102 requires eye or face protection when workers face hazards such as flying particles and molten metal. CDC/NIOSH reported in 2020 that construction had a nonfatal struck-by injury rate of 2.7 per 10,000 full-time equivalent workers, with falling or flying objects and equipment causing most nonfatal struck-by injuries. On site, wear eye protection, clear sharp chips, and keep extra screws off walking surfaces.

How Can You Specify Them for Purchase Orders?

A clear buying spec helps avoid wrong substitutions. Do not order only by length and head shape. Add the material, point, finish, drive, and standard reference where needed. This matters more for export orders, because local names can vary a lot from one market to another.

Size, Length, and Head Style

State the nominal size, thread length, overall length, and head style. Common heads include hex washer, pan, truss, flat, and wafer. A hex washer head is easy to drive in metal framing. A flat head needs a countersunk hole. A pan or truss head spreads load better on thin sheet, but it sits above the surface.

Point, Thread, and Drive Details

List whether you need self-drilling, thread cutting, or thread forming action. Add the drill point number or the pilot hole requirement if the application needs it. For drive style, Phillips is common, but hex, square, and Torx-style drives can reduce cam-out in production work. This small detail can make assembly smoother when operators drive many screws per shift.

Finish, Standard, and Packaging Terms

Finish terms should be clear. Zinc plated, zinc nickel, mechanical galvanized, stainless, black oxide, and painted heads are not interchangeable. If the job has inspection requirements, reference ASME B18.6.3, ASME B18.6.4, ISO 1478, SAE J78, or the project drawing as needed. Also confirm packing terms early, because carton weight, label format, and pallet method can affect export handling.

• Example spec: #10 x 1 inch hex washer head self-drilling tapping screw, hardened carbon steel, zinc plated, for light-gauge steel.
• Better spec: add drill point style, washer type, coating thickness or salt-spray requirement if known, carton quantity, and drawing number.
• For uncertain applications, request samples and test them in the real metal stack before full shipment.

FAQ

Q1: Are Self Tapping Bolts for Metal the Same as Self Drilling Screws? A: Not always. Self tapping means the fastener creates or cuts its own mating thread. Self drilling means the point also drills the hole. Many self drilling screws are self tapping, but many self tapping screws still need a pilot hole.

Q2: Do You Always Need a Pilot Hole in Metal? A: No. A self-drilling type can make its own hole in suitable metal thickness. A non-drilling tapping screw usually needs a pilot hole. Always check the supplier chart because hole size depends on the screw and sheet thickness.

Q3: Can Stainless Self Tapping Fasteners Drill Steel? A: Stainless can work in some light applications, but it is usually not as hard at the point as hardened carbon steel self-drilling screws. For drilling steel sheet, hardened carbon steel with a proper coating is often the safer choice.

Q4: Why Do Self Tapping Screws Strip in Sheet Metal? A: The common causes are an oversized pilot hole, overdriving, too little sheet thickness, poor thread engagement, or a screw reused too many times. Reduce driver torque and test the correct hole size.

Q5: What Information Should You Send to a Supplier? A: Send size, length, head style, drive type, point type, material, finish, target metal thickness, quantity, packing needs, and any standard or drawing reference. A photo of the application also helps avoid a wrong part.
