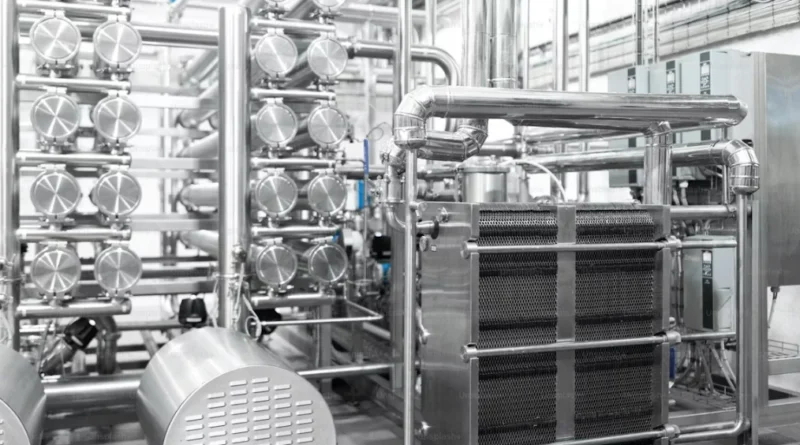

Why 304 Stainless Steel Fails: The Chloride Pitting Problem

SAE 304 stainless steel gets used a lot because it fights off rust well. But it still has a weak spot against pitting from chloride. This kind of failure happens when the thin protective layer of chromium oxide breaks in spots. That leaves the metal open to quick damage. Even though people see it as a strong material, salt water or ocean air can start fast, focused rust that hurts the whole structure. In places like boat parts or pipes near the sea, this shows up often. I’ve heard stories from workers who found small holes eating through tanks after just a few wet seasons.

Composition and Microstructure of SAE 304

SAE 304’s ability to resist rust comes mainly from what it’s made of and how its tiny parts are built. The metal usually has about 18% chromium and 8% nickel. This mix creates a structure experts call austenitic. It helps form a steady protective layer on the outside. That layer shields the steel from rust in many settings.

The Role of Chromium and Nickel in Forming a Passive Oxide Layer

Chromium does the main job for this protection. When it touches air, it makes a very thin layer of chromium oxide (Cr₂O₃). This acts like a wall between the metal and everything around it. Nickel helps keep the structure in a face-centered cubic (FCC) austenitic form. It boosts flexibility and strength. Plus, it makes rust resistance better in spots with less oxygen.

Austenitic Microstructure and Its Influence on Corrosion Resistance

The all-austenitic setup in SAE 304 helps with even rust protection. It gets rid of ferrite parts that might start electrical reactions. But this same setup can hold bits of dirt or small bits from the making process. Those bits turn into starting points for focused damage later on. Think of it like hidden flaws in a solid block of cheese that only show up when you cut deep.

Alloying Elements Supporting Passivation

Small amounts of manganese and silicon help keep the protective layer strong. Manganese cleans out oxygen during the melting step. Silicon fights off rust better at high heat. Together, these keep the layer solid during building or heat changes. In factories, this matters a lot for parts that get hot now and then.

Passive Film Formation and Its Protective Mechanism

The protective film on SAE 304 appears on its own in places with air. How steady this film is decides if the steel stays safe or gets open to focused rust.

This film’s guarding power reminds me of how well systems hold up in other fields. Picking suppliers for solar inverters and energy storage matters big time for home or business power setups that last years. In the same way, steady air supply keeps protection going strong on steel surfaces. Without it, things go wrong fast, like a car battery dying in the cold.

Structure and Chemistry of the Cr₂O₃ Passive Film

The Cr₂O₃ film looks glassy or made of tiny crystals. It is just a few nanometers wide but sticks tight. It stops electrons from moving between the metal and outside. That cuts down on rust-causing flows.

Oxygen Availability Maintaining Protection

If air is around, any hurt spots heal up quick with new film. But in still or air-poor areas, like cracks, the layer can’t come back right. This sets up spots for pitting to start. For example, under a loose bolt in salty air, this happens a lot.

Thermodynamic Stability Under Neutral and Oxidizing Conditions

On a basic level, Cr₂O₃ stays solid in normal to slightly air-rich acid levels. Yet chloride bits can mess it up. They make solvable chromium salts that wash away film parts.

Mechanisms of Chloride-Induced Corrosion in SAE 304

When chloride bits show up, like from sea spray or road salt, they hit the protective films on stainless steels hard. The action starts with film breaks in small areas. Then pits grow fast.

The Role of Chloride Ions in Passive Film Breakdown

Chloride bits slip into weak places in the oxide by sticking and moving along flaws. Once in, they cause local acid build-up. This comes from reactions between metal bits (Fe²⁺ or Cr³⁺) and water.

That drops the acid level a lot in those spots. It stops the film from healing. And it keeps active rust areas going under the still-good film nearby.

Local Acidification and Metal Cation Hydrolysis Reactions

In these spots, Fe²⁺ mixes with H₂O to make Fe(OH)⁺ and H⁺. This happens over and over. It builds up acid bits inside pits. That speeds up how pits begin.

Electrochemical Reactions Leading to Pit Nucleation

Metal breaking down goes on until pits hit a key size. Then, movement limits hold steady electric differences. This keeps growth going, even without outside push.

Pitting Corrosion Initiation and Propagation Processes

After starting, pits go through clear electric steps. First comes the start. Then comes the spread. Each part gets shaped by surroundings and tiny metal features.

Nucleation Stage

Nonmetal bits like MnS grains or edge builds act as start points. They break the film’s even cover. The key breakdown level (Epit) sets the line where pits begin. Under this level, the surface stays covered, even in salty stuff.

Propagation Stage

Inside a working pit, metal breaking makes more bits. Those mix with water to make more acid. It’s a loop that feeds itself. Chloride bits build up by moving into these active zones. That keeps the damage strong.

Air difference cells form between pit insides (active) and outside (less active). This lets steady flows happen. Growth keeps on until something breaks it, like a shift in weather.

Heat makes bits move faster. More salt lowers the start level more. Lower acid stops healing. All this speeds up how pits grow. In real life, summer heat near the ocean makes this worse, as crews in shipyards know from yearly checks.

Factors Affecting Chloride Attack on SAE 304 Stainless Steel

How easy it is to rust changes based on the metal’s build and what it’s out in. Even the same metal acts different after bending work or heat treatments.

Metallurgical Factors Influencing Susceptibility

Small-grain setups often help with even covering. But they can add more edges where bad builds happen if heat is off. Bending adds leftover pulls that twist the tiny setup near films. This helps cracks break films.

Sensitization means bad chromium builds at edges around 500–800°C. It pulls chromium low in nearby spots, under 12%. Those spots get hit hard by edge rust in salt.

Environmental Conditions Promoting Failure

Ocean air full of NaCl bits speeds up pitting. High salt action plus wet-dry changes do it. Heat boosts movement rates. Still water traps block air refresh in cracks or joint spots. This is like bad air flow hurting heat loss in power gear, as TechBullion notes in their tech looks.

Good planning stops these traps. It helps steel setups last longer, much like picking the right parts for a machine that runs 24/7.

Comparative Analysis with Other Stainless Steels Under Chloride Environments

Builders often look at SAE 304 next to stronger mixes when thinking about life in salty spots. Like in water cleaning plants or beach builds.

Performance Differences Between SAE 304 and SAE 316 Grades

SAE 316 has about 2–3% molybdenum. That raises its Pitting Resistance Equivalent Number (PREN). Molybdenum makes films tougher by adding Mo-oxides. These block salt better than just Cr₂O₃. So, the key pitting heat (CPT) for SAE 316 beats SAE 304 by 10–20°C in same salt levels. In tests, this means SAE 316 holds up in warmer salt water, say around 40°C, while 304 starts failing sooner.

Limitations of Alloy Modification for Severe Chloride Exposure

But past some lines, like always in sea water, even these stronger ones give out in time. Then, duplex stainless steels or super-austenitic types step in. They cost more but have two-phase setups for strength and better film hold in tough liquids.

This cost vs. work balance shows up in other areas too. One-stop setups for commercial energy storage, where one maker gives inverters, batteries, BMS, EMS, and boxes as a full pack, cut mix-up risks. In metals, sticking to one type lowers fix work, even if start cost goes up. From what I’ve seen in industry talks, this saves headaches down the line.

Advanced Mitigation Strategies Against Chloride Attack

Ways to stop this focus on fixing surfaces plus smart setup plans. Not just better metals.

Surface Engineering Techniques for Enhanced Resistance

Passivation Treatments

After making, acid baths with nitric or citric clean off iron dirt. They rebuild even oxide on welds or cut spots. This is common before use in food gear or pipes with salty water. It adds a layer of safety, like wax on a car to fight rain.

Coatings and Thin Film Technologies

Coatings from ceramics like TiN or plastic fluorocarbons block salt entry. They work well where cleaning with halogen stuff happens often, like in cleaning jobs.

Environmental Control and Design Considerations

Reducing Exposure Conditions

Good drain plans cut still wet build-up under seals or holds. Capillary wet pull could start crack rust there. This matches how poor air hurts heat spread in power tech, per TechBullion reviews.

Material Selection Guidelines

Pick rules balance salt amount vs. planned life. Mild salt might use steady types like 321. Hard sea dips need duplex, even with tough welding from high strength. In practice, for a coastal bridge, this choice can add decades to upkeep.

Analytical Methods for Studying Chloride-Induced Failures in SAE 304 Stainless Steel

Spotting the problem right needs electric tests plus close-up looks. These show tiny damage you can’t see with eyes.

Electrochemical Characterization Techniques

Electric sweep graphs find Epit values. They show start levels for focused breaks in lab setups. Electrochemical Impedance Spectroscopy (EIS) watches film strength over time. It gives hard numbers on how damage grows in fake work tests. These can run weeks or months, based on how tough the test is, as used by experts around the world.

Microscopic and Spectroscopic Examination Approaches

Scanning Electron Microscopy (SEM) shows pit shapes. You see round holes with healed edges. X-ray Photoelectron Spectroscopy (XPS) measures element forms. It proves chromium loss around active pits. This backs up models from electric data. These ways have been key since early ASTM G48 tests. They help engineers check real breaks in oil pipes or city fronts by the sea. In one case I recall from a report, SEM caught pits just 50 microns wide that led to a full leak in a tank after two years.

FAQ

Q1: Why does SAE 304 corrode faster near coastlines?
A: Salt-laden air carries chloride ions that penetrate its passive film causing localized attack even without full immersion exposure.

Q2: How can fabrication affect corrosion performance?
A: Improper welding induces sensitization leading to chromium depletion at grain boundaries making those areas prone to intergranular corrosion under chlorides.

Q3: Is passivation always effective against pitting?
A: It restores oxide continuity but cannot prevent breakdown if environment remains highly acidic or rich in chlorides beyond alloy capability limits.

Q4: What testing method best predicts field performance?
A: Potentiodynamic polarization combined with long-term EIS monitoring provides reliable comparative data reflecting real-world degradation trends.

Q5: When should duplex stainless steel replace SAE 304?
A: When exposure involves high temperature brine contact or continuous seawater immersion where standard grades lose passivity rapidly despite maintenance efforts.
