Pipe valves explained by type, material, rating, and application

What pipe valves do in a piping system

Pipe valves do more than provide an open-or-closed point in a line. They determine how a piping system can be isolated, regulated, drained, protected from reverse flow, and maintained without shutting down more equipment than necessary. The right valve depends on the fluid, pressure, temperature, pipe size, connection method, operating frequency, and applicable standard. A small potable-water line, a chilled-water loop, a natural-gas service line, and a high-temperature process pipe may all use valves, but they should not be selected by size alone. The practical question is whether the valve design, material, rating, seal, and certification match the service, not just whether it fits the pipe.

For a broader view of related components, see the fittings and valves category.

In technical specifications, pipe valves are usually defined by function, body material, nominal pipe size, pressure class or working pressure, end connection, seat and seal material, operator type, and the standard used for manufacture or testing. ASME describes B16.34 as a standard for new valve construction covering pressure-temperature ratings, dimensions, tolerances, materials, nondestructive examination requirements, testing, and marking for flanged, threaded, welding-end, wafer, and flangeless valves in covered materials. (asme.org)

Main types of pipe valves and where they fit

Different pipe valves solve different control problems. A common specification error is treating valve names as interchangeable. In practice, the internal flow path, sealing method, and operating motion affect pressure drop, shutoff performance, throttling suitability, maintenance, and installation space.

Valve type	Primary purpose	Typical selection note
Gate valve	Full-open or full-closed isolation	Low restriction when fully open, but generally not preferred for frequent throttling.
Ball valve	Quick quarter-turn isolation	Compact and fast operating; port design affects flow area and pressure drop.
Globe valve	Throttling and flow regulation	Better control than many isolation valves, but usually with higher pressure drop.
Butterfly valve	Isolation or modulation in larger lines	Often space-efficient for larger diameters; seat and disc materials matter.
Check valve	Reverse-flow prevention	Selected by flow direction, cracking pressure, orientation, and risk of water hammer.
Plug valve	Quarter-turn isolation for selected services	Useful where the service and maintenance plan match the plug and seal design.

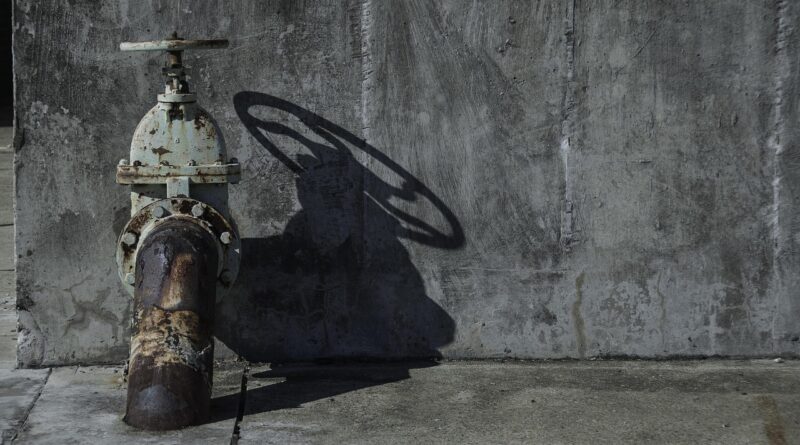

Gate valves

Gate valves are usually selected for low-resistance isolation when the valve is fully open. They are common in water distribution, fire protection, and general utility lines. Their limitation is control. A partially open gate can vibrate, erode, or create unstable flow, so a gate valve should not be treated as a general-purpose throttling valve unless the design and service specifically allow it.

Ball valves

Ball valves use a rotating ball with a bore through it. They are valued for fast quarter-turn operation and tight shutoff in many services. Full-port ball valves keep the opening closer to the pipe bore, while reduced-port designs can be smaller and less costly but introduce more restriction. MSS lists SP-72 for ball valves with flanged or butt-welding ends for general liquid and gas service, and describes covered ball valves as including full-port, regular-port, and reduced-port types. (msshq.org)

Globe, butterfly, and check valves

Globe valves are often specified where repeatable flow adjustment matters more than minimum pressure drop. Butterfly valves are widely used where larger line sizes, compact face-to-face dimensions, and quarter-turn operation are important. Check valves are different because they operate automatically: they respond to flow and differential pressure rather than to a handwheel or actuator. Their performance depends heavily on orientation, flow velocity, and whether the system is vulnerable to slam or water hammer.

Material choices and fluid compatibility

Valve material selection starts with the fluid, but it should also account for temperature, pressure, corrosion allowance, cleaning chemicals, outdoor exposure, and code requirements. Common body materials include brass, bronze, cast iron, ductile iron, carbon steel, stainless steel, and engineered plastics. Seats and seals may use elastomers or polymers such as EPDM, NBR, PTFE, or other compounds, depending on temperature and chemical compatibility.

Brass and bronze are common in smaller plumbing and general water applications, but drinking-water use requires attention to lead-content rules and product certification. The U.S. EPA explains that lead free for covered pipes, pipe fittings, plumbing fittings, and fixtures means no more than a 0.25 percent weighted average lead content across wetted surfaces, with a 0.2 percent limit for solder and flux. (epa.gov)

Iron and ductile iron valves are widely used in waterworks and utility piping because they can be economical in larger sizes. Carbon steel and alloy valves are common in industrial pressure piping, especially where higher temperatures or process conditions exceed the practical range of plumbing-grade materials. Stainless steel is often selected for corrosion resistance, cleanability, or compatibility with specific fluids, but the grade still matters. A general stainless label is not a substitute for checking chloride exposure, temperature, and chemical concentration.

Plastic valves can be appropriate in low-temperature water, chemical, irrigation, and light industrial systems, but pressure ratings typically fall as temperature rises. For nonmetallic valves, the pipe material, solvent cement or joining system, ultraviolet exposure, and thermal expansion should be considered together.

Pressure, temperature, and end connections

Pipe valve ratings are often misunderstood because a pressure number is not universal. A valve marked for one pressure at ambient temperature may not carry the same pressure at an elevated temperature. For industrial metallic valves, this pressure-temperature relationship is one reason standards and material groups matter. ASME B16.34 is often referenced because it connects valve construction requirements with pressure-temperature ratings and marking for covered valve types and materials. (asme.org)

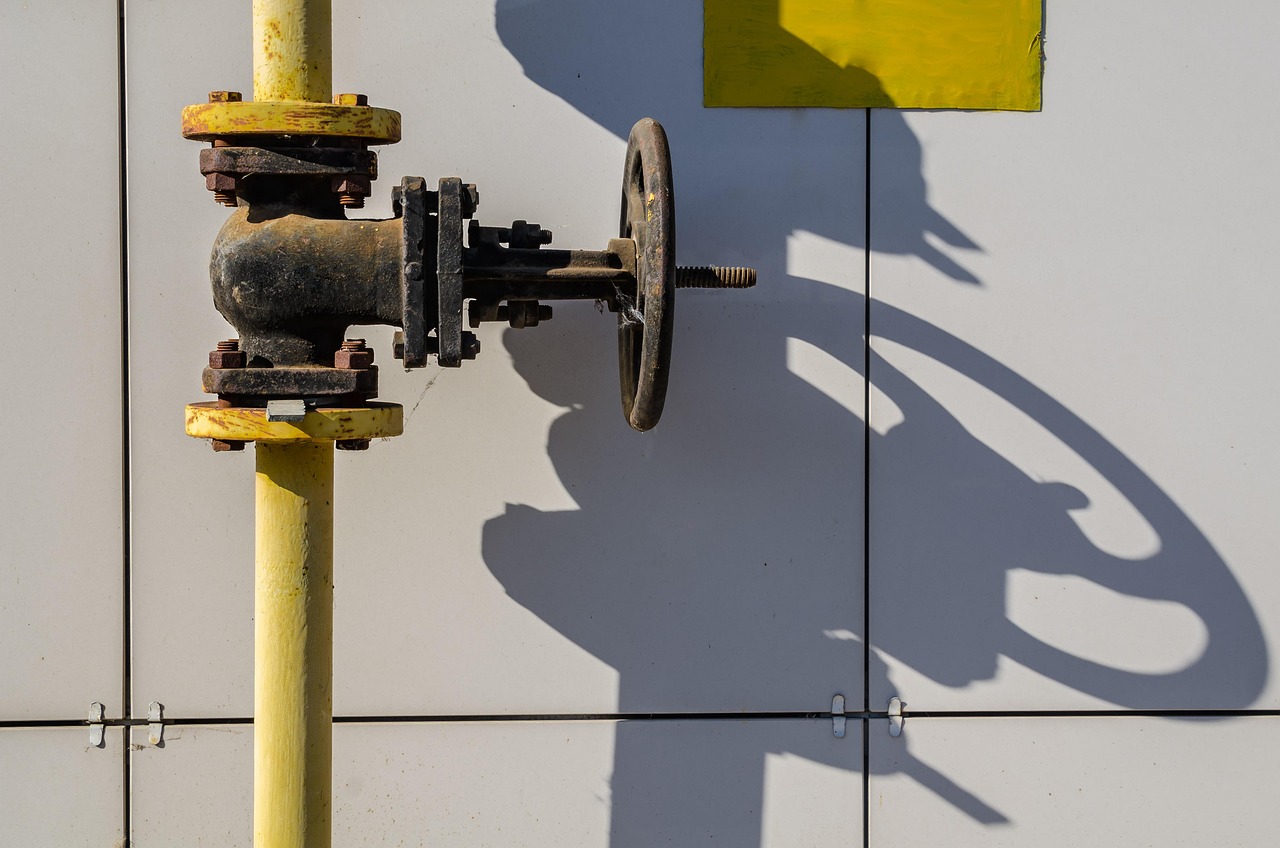

Connection type also affects valve selection. Threaded valves are common in smaller lines and maintenance-friendly installations, but thread engagement, sealant compatibility, and pressure limitations must be checked. Flanged valves are easier to remove from larger systems and align with standardized bolting and gaskets. Welded-end valves can provide strong, leak-resistant joints in process piping, but they make removal more difficult and require welding procedures, inspection, and heat-control planning. Grooved, press, compression, and union connections may be appropriate in specific plumbing, fire protection, or mechanical systems when allowed by the project specification and listing requirements.

End connection should match more than pipe size. A valve may be the right type and material but still be wrong for the job if its flange drilling, pressure class, thread form, laying length, gasket surface, or actuator clearance does not match the installation.

Standards and compliance points to check

Standards do not select a valve by themselves, but they give engineers, buyers, inspectors, and installers a shared language for minimum requirements. For waterworks, AWWA lists valve standards including C504-23 for rubber-seated butterfly valves, C508-17 for swing-check valves used in waterworks service, C509-23 for resilient-seated gate valves for water supply service, and C515-20 for reduced-wall resilient-seated gate valves. (awwa.org)

MSS maintains many valve-related standard practices. Its active standards list includes SP-61 for pressure testing of valves, SP-67 for butterfly valves, SP-70 for gray iron gate valves, SP-71 for gray iron swing check valves, SP-72 for ball valves with flanged or butt-welding ends, and SP-80 for bronze gate, globe, angle, and check valves. (msshq.org) See also: Bolts & Fasteners.

For drinking-water contact, material health effects are separate from mechanical performance. NSF describes NSF/ANSI/CAN 61 as establishing minimum health-effects requirements for contaminants and impurities that may be indirectly imparted to drinking water from products, components, and materials. NSF also notes that the standard covers mechanical devices including valves, but does not establish performance, taste and odor, or microbial growth support requirements. (nsf.org)

In practical purchasing, a valve specification may need several layers: a mechanical or dimensional standard, a pressure or service rating, a material requirement, and a drinking-water or lead-free certification if the valve contacts potable water. A certificate without the correct size range, temperature range, or wetted material coverage should not be treated as a blanket approval.

A practical selection checklist

A clear valve schedule helps reduce substitution errors. Before ordering or approving pipe valves, check the following points against the drawing, specification, and actual service conditions:

• Function: isolation, throttling, reverse-flow prevention, drain, vent, balancing, pressure relief, or control.
• Fluid: potable water, wastewater, steam, gas, oil, chemical solution, compressed air, glycol, slurry, or another service.
• Operating conditions: normal pressure, maximum pressure, test pressure, normal temperature, temperature excursions, and cycling frequency.
• Valve type: gate, ball, globe, butterfly, check, plug, diaphragm, needle, or specialty valve.
• Materials: body, bonnet, trim, stem, disc or ball, seat, seal, coating, and fasteners.
• Connection: threaded, flanged, welded, grooved, press, union, compression, or another specified joint.
• Size and flow: nominal size, port type, pressure drop, velocity range, and whether full-bore access is needed.
• Operation: handwheel, lever, gear operator, chainwheel, electric actuator, pneumatic actuator, or automatic flow actuation.
• Certification: code, standard, listing, lead-free requirement, drinking-water certification, fire rating, or project-specific approval.
• Maintenance: access space, spare parts, packing adjustment, seat replacement, actuator removal, and isolation plan.

The best selection is usually the valve that meets the required standard with the fewest unresolved assumptions. Overspecifying can raise cost and complicate procurement, while underspecifying can lead to leakage, corrosion, pressure loss, inspection failure, or early replacement.

Common mistakes when specifying pipe valves

One frequent mistake is using valve type as the entire specification. The phrase ball valve, for example, says little about port size, body material, stem design, seat material, end connection, pressure-temperature rating, certification, or actuator mounting. Another mistake is copying a valve from one service to another because the pipe diameter is the same. Two systems with the same nominal pipe size can have very different temperature, fluid, certification, and maintenance requirements.

A third mistake is ignoring the installed position. Some check valves are sensitive to horizontal or vertical orientation. Some actuated valves need clearance for removal or manual override. Large butterfly valves may require attention to disc swing clearance near fittings. Threaded valves in small piping may be easy to install but difficult to remove later if the piping lacks unions or isolation points.

Finally, buyers should avoid treating price as the only differentiator. For ordinary noncritical service, a simple standard valve may be sufficient. For potable water, steam, fuel gas, high-temperature process service, or buried waterworks, the cost of a wrong valve can include rework, downtime, safety risk, and compliance problems.

Frequently asked questions

What is the difference between a pipe valve and a pipe fitting?

A pipe fitting changes direction, branches flow, adapts size, or joins pipe sections. A pipe valve actively controls the flow path by opening, closing, throttling, or preventing reverse flow. Some assemblies combine both functions, but valve selection normally requires additional attention to seats, seals, operators, and ratings.

Which pipe valve is best for shutoff?

There is no single best shutoff valve for every system. Ball valves are often convenient for smaller quick shutoff applications, gate valves are common where a full-open low-restriction path is desired, and butterfly valves are often practical in larger lines. The correct choice depends on the medium, pressure, temperature, size, leakage requirement, and standard.

Can a gate valve be used for throttling?

Gate valves are generally intended for open-or-closed service rather than routine throttling. If flow control is required, a globe valve, control valve, characterized ball valve, or suitable butterfly valve may be more appropriate depending on the service.

Do potable-water valves need special certification?

In many U.S. potable-water applications, valves must meet lead-free requirements and may need certification to drinking-water health-effect standards such as NSF/ANSI/CAN 61, depending on the project, code, and authority having jurisdiction. Mechanical suitability and drinking-water material compliance should be checked separately.

Why does valve pressure rating change with temperature?

Materials lose strength or change behavior as temperature changes, and seats or seals may have lower limits than the metal body. That is why pressure-temperature tables, material groups, and manufacturer data should be checked instead of relying on a single pressure number stamped on the valve.
