The Aluminum Selection Matrix: Choosing Grades Based on Weldability, Strength, and Cost

Selecting the right aluminum grade is not a simple choice. You need to think about strength versus weldability. You also balance cost against corrosion resistance. Plus, you consider how easy it is to work with the material against how well it holds up over time. Each group of alloys offers a unique mix of features. Your pick impacts not just how strong the part is but also how much it costs to make and how long it lasts. This piece looks at ways to handle these choices. It uses a matrix to match material traits with actual engineering demands.

Aluminum Selection Matrix

Key Factors in Aluminum Grade Selection

When you check out aluminum grades, start with strength, weldability, corrosion resistance, and cost. These four things make up the main part of any selection matrix. A strong alloy like 7075 works great in terms of power but can be tough to weld or shape. Alloys such as 5052 give good protection against rust. They are simple to form. But their pulling strength is not as high.

The best pick comes from weighing mechanical needs against making limits. For instance, in boat parts where salt water touches them all the time, fighting rust matters more than raw power. In plane parts, the goal is the best strength for the weight. Cost does not matter as much. The place where the item will be used affects things too. Humid beach air calls for different finishes than dry factory spots. You might add anodizing or paint to protect it.

Classification of Aluminum Alloys

Aluminum alloys split into two big types: wrought and cast. Wrought ones get shaped by rolling or pushing through dies. This makes them more bendy and even in strength. Cast alloys get poured into forms. They let you make tricky shapes. But they often have less steady strength because of tiny holes and uneven grains.

The series system from 1xxx to 7xxx sorts them by what is mixed in and common jobs. The 1xxx series is almost pure aluminum. It carries electricity well but lacks power. 2xxx has copper for lots of strength. 5xxx adds magnesium for tough use in salt water. 6xxx mixes magnesium and silicon for a fair mix of traits. 7xxx uses zinc for top strength, but it costs more. Temper labels like T6 or H32 show how heat or stretching changes hardness and bendiness.

Evaluating Strength Across Common Aluminum Grades

Mechanical Performance of Major Alloy Series

Each series shows different ways it acts under force. This comes from the main added metals. The 2xxx series gets its power from copper. But it does not resist rust as well. So, it suits plane bodies but not boat parts. The 5xxx series uses magnesium for fair to good strength. It welds nicely and stands up to sea water. You see it in ships or tanks that hold pressure.

The 6xxx group is right in the middle. Alloys like 6061 with magnesium and silicon bend well. They offer solid build quality. People use them in car frames or bike frames. At the high end, the 7xxx series with zinc reaches pulling strengths over 500 MPa. It fits plane beams where saving weight is key. But making it takes more steps, so the price goes up.

Comparing Yield and Tensile Strength Metrics

Yield strength goes from about 35 MPa in pure aluminum of the 1xxx series. It climbs to more than 500 MPa in treated 7075-T6. Heat treatment boosts these traits. It does this by making tiny strong spots in the metal. However, this also cuts down on how much you can bend it. Once hard, trying to fold or pull it deep might cause breaks.

You run into choices here. Picking higher yield gives better load handling. But it means less room to shape during building. Designers should think about these links early. That way, they skip expensive fixes down the line. In my view, overlooking this can lead to headaches, like when a shop had to scrap a batch of bent parts because the alloy was too stiff.

Cost Considerations in Aluminum Alloy Selection

Factors Influencing Material Cost

Material cost comes from a few linked things. These include how much of certain added metals there are, like zinc or copper that bump up the price. Also, how hard it is to process, such as pushing through shapes versus pouring. Supply levels play a part too. Alloys with rare or pricey extras cost more per pound. This is due to hard-to-get starting stuff and steps that use lots of power.

How you process it counts as well. Sheets from wrought alloys need several runs through machines. Cast pieces cut down on cutting time. But they might not be as exact in size. Being able to reuse aluminum helps a lot. Recycled stuff takes just five percent of the power for new smelting. So, it saves money and is kinder to the planet. For example, car makers often mix in recycled aluminum to keep costs down without losing quality.

Balancing Cost Against Performance Requirements

In big making runs, like for cars, you might pick cost savings over top performance. Say you switch from pricey 7075 to cheaper 6061. This cuts bills a lot. It does not hurt the build much if the loads are okay. Think about full costs over time. Not just the starting price, but upkeep too. Coatings to stop rust or fresh paint can add costs over years.

A full look at cost and work often shows that a bit weaker alloy can save more overall. This is when ease of making and lasting power are in the mix. It’s like choosing a reliable truck part that costs less to fix than a fancy one that breaks easy.

Weldability and Fabrication Characteristics of Aluminum Grades

Influence of Alloy Composition on Weld Quality

How well an aluminum grade welds changes a lot. This is because each mix acts different with heat. Alloys high in magnesium from the 5xxx series make neat welds. They have little chance of cracks. They do not need heat fixing after. So, their strength stays even. Grades that can be heat-treated, like in 2xxx, 6xxx, or 7xxx, lose some hardness by the weld. You need extra heat steps to bring it back.

To stop cracks from heat, pick the right filler stick. One with a close but not exact mix can ease stresses as it cools and sets. In practice, welders in shipyards swear by this trick for smooth joins on 5052 plates.

Machinability and Forming Behavior Considerations

How easy it is to machine ties to the temper state. Soft ones make long curls that might jam tools. Hard ones snap off clean but wear blades quicker. Limits for shaping differ too. 5052 folds nicely even on small curves. But tough tempers like 7075-T6 can crack if you push cold bending too far.

The finish from cutting affects later steps like anodizing. Small tool lines show up as rough spots after the oxide layer. Keeping tools sharp helps, as shops know from daily runs.

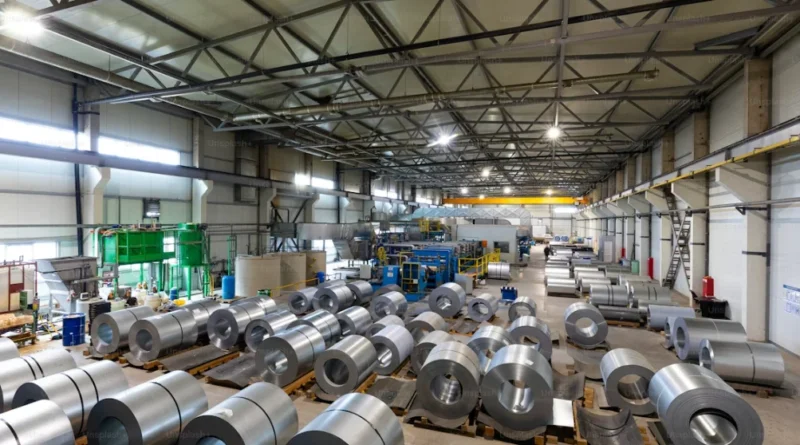

Identifying Grades That Offer the Optimal Balance of Strength and Cost

Comparative Analysis of Popular Structural Alloys

5052 Aluminum Alloy

5052 offers fair pulling strength around 200 MPa. It fights rust well because of the magnesium. You find it in boat sides, gas tanks, or building covers where water hits often. It does not need heat treatment. And it welds easy without extra work. So, makers save time and effort in putting things together. I’ve seen it used in trailer panels that last years in rainy spots without a single pit.

6061 Aluminum Alloy

6061 is one of the go-to aluminum types right now. It has a nice blend of traits. It machines well. It resists rust okay. Its yield strength hits near 275 MPa in T6 temper. You can get it in many shapes, like flat pieces or pushed profiles. It works for jobs from truck bases to work tools. Here, steady results count more than wild specs. For instance, bike makers pick it for frames that take daily bumps without failing.

7075 Aluminum Alloy

On the strong side, 7075-T6 pulls harder than some steels. Yet it keeps the light weight of aluminum at about 2.8 g/cm³. The zinc mix gives this great output. But it raises the cost from tricky heat steps to get it fully strong. Plane bodies or tough gear cases use it. Weight savings make up for the extra spend. Think of fighter jet parts where every ounce saved means better flight.

Selecting the Right Grade Based on Application Priorities

To pick among these, line up what matters most. If salt water hits the design every day, go for rust fighters like 5052. They might not be as strong. But they hold up. If keeping stiff under money limits is key, choose all-around types such as 6061. When you need top strength per weight, no matter the price, like in planes, 7075 is the best.

Look at full making costs, not just the base price. Ways to join, finish steps, and how long it serves all shape the total spend. Sometimes, a middle-ground alloy surprises by cutting overall bills in real projects.

Future Trends in Aluminum Alloy Development for Cost Efficiency

Emerging High-strength Low-cost Alloys

New studies aim to cut back on pricey added metals. They keep good power levels by tweaking the tiny structure. Methods like friction stir work or quick cooling make grains smaller. This skips expensive heat rounds. In labs, these tweaks have boosted strength by 20 percent without extra cost, based on recent tests.

Mixed making ways now join old pouring with layer adding. This strengthens just the needed spots. It cuts waste but keeps stiff areas in wild shapes. It’s gaining traction in auto parts where custom strength saves material.

Sustainability-driven Material Optimization

Green rules push more use of reused metal flows. This drops power needs a ton. Performance stays in line for most factory jobs now. Another push is standard powders for printing. These come from recycled aluminum. Shops print almost ready parts straight from them. Scrap drops to near zero. One factory cut waste by half this way, and it shows in their bottom line.

Overall, these shifts make aluminum smarter for the future. They blend strength, cost, and eco-friendliness in ways that fit everyday needs.

FAQ

Q1: What makes aluminum grades differ so much in price?
A: Price differences mainly come from alloying element content such as zinc or copper plus processing complexity during extrusion or rolling stages which require more energy-intensive operations.

Q2: Which aluminum grade is best suited for welding applications?
A: Magnesium-based alloys from the 5xxx series generally offer superior weld quality because they maintain stable mechanical properties after fusion without needing post-weld heat treatment.

Q3: How does heat treatment affect an alloy’s mechanical behavior?
A: Heat treatment increases yield and tensile strengths by forming fine precipitates inside the metal matrix though it usually reduces ductility making forming operations harder afterward.

Q4: Why do aerospace designers prefer using the 7075 grade?
A: They favor it due to its exceptional strength-to-weight ratio allowing lighter structures capable of handling heavy loads despite higher material costs involved.

Q5: Can recycled aluminum match virgin material performance?
A: Yes—in most structural applications recycled aluminum performs comparably since refining processes restore purity levels close enough for standard industrial tolerances while drastically lowering energy consumption per ton produced.
